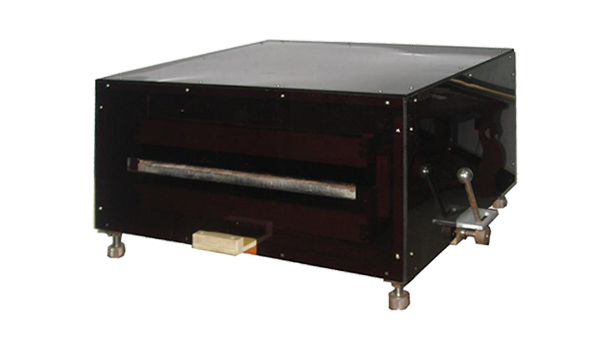

SST-500 Permeameter is the special excitation device for measuring magnetic properties of single electric steel with the size of 500mm×500mm, it can be used together with MATS-2010M Hysteresisgraph.
The design and manufacture of SST-500 Permeameter confirms to <GB/T 13789-2000 Methods of measurement of the magnetic properties of magnetic sheet and strip by means of a single sheet tester>
Features
SST-500 Permeameter is consist of magnet yoke, test coils( two coils: primary excitation and secondary induction), air flux compensation, transmission mechanism and sheet out device.
Select material strictly, the magnet yoke adopts import high-performance grain oriented silicon strip to guarantee the performance of the machine.
The design of magnet yoke is compact, the unique design of fasten slot can guarantee the stability of the yoke when it works continuously with high strength and long serving life.
The sheet out device makes it convenient to take in and out of the sample.
Specifications
| Items | SST-500 Permeameter | Customized Permeameter |
| Environment temperature | 23℃±5℃ | 23℃±5℃ |
| Humidity | ＜65% | ＜65% |
| Applied standards | GB13789-2008 and IEC 60404-3 | Refer to GB13789-2008 |
| Sample size | 500mm X 500mm | 30mm X 100mm; 30mm X 300mm; 100mm X 100mm can be customized |
| Total loss of magnet yoke | ≤1.0w/kg(50Hz，1.5T) | …… |
| Sheet in method | By manual | By manual |
| Sheet out method | By manual | By manual |
| Frequency | 50Hz-150 Hz | 50Hz or 60Hz |
| Measurement range | The measured range of grain oriented silicon steel sheet is Bm：1.0T～1.8T Hm ＜1000A/m The measured range of non-oriented silicon steel sheet is Bm：0.8T～1.5T Hm ＜10KA/m | |

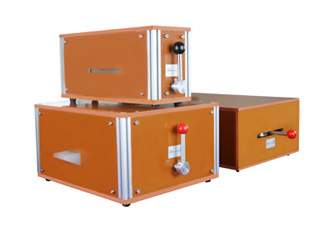

Customized Permeameter
