CIM-320XHC Coercimeter is specialized in measuring the coercivity of soft magnets. The measured samples are soft magnets with shape of strip, bar and sheet, and magnetic components such as relay, electromagnet valve, magnetic head and so on. It can visually evaluate the magnetic change of magnetic components during the workmanship (such as electroplating, annealing and welding); and also be used for magnetic measurement of magnetic label, magnetic anti-forgery ink and cemented carbide.
CIM-320XHC Coercimeter adopts vibration sample zero flux detection sensor, with high sensitivity and accuracy. It can test sample by operating the panel under the condition of stand-alone machine and also test by upper computer software control.
Test Items
► Test sample category: soft magnets such as electrical pure iron, precision alloy, martensitic.
► Test sample shape: strip, sheet and rod.
► Directly test the coercivity of soft magnet components such as relay, solenoid value, magnetic head, leakage protector, magnetic label as so on. (Equip with measuring fixture).
► Test range:5~1000A/m
► Sample size: max Φ57mm*200mm, Min:20μm x 1mm x 30mm (equip with customized test platform)
Technical Data
| Working Environment | ||
| Parameters | Specifications | |
| Input Power | Single phase 220V, 50Hz | |
| Environment | Temperature: 23±5℃; Humidity: 30~75%RH | |
| External magnetic field interference | Absolutely avoided | |
| Thermal balance time | 10 minutes | |
| TPS-XXXX Power Supply | ||
| Model | TPS-510D | TPS-1020DP |
| Max. Exciting voltage | 50V | 50V |
| Max. Exciting current | 10A | 20A |
| Current fineness | < 0.1%×current range | < 0.1%×current range |
| Current stability | Superior to 0.05% | Superior to 0.05% |
| LZ-840 Fluxmeter | ||
| Parameters | Specifications | |
| Display | 4¾ digits | |
| Integral capacity | 0.1 µF | |
| Input resistance | 100 k, 10k, 10 k, 10 k | |
| Range | 40mVs, 4mVs, 0.4 mVs, 0.04mVs | |
| Resolution | 0.01, 0.001, 0.0001, 0.00001 mVs | |
| Accuracy | 1% reading±4uVs(10Hz-10kHz); ±5% reading±4uVs(2Hz-10Hz: 10kHz-50kHz); | |
| Integral drift | N/A | |
| Frequency range | 2 Hz to 50 kHz | |
Equipment Composition

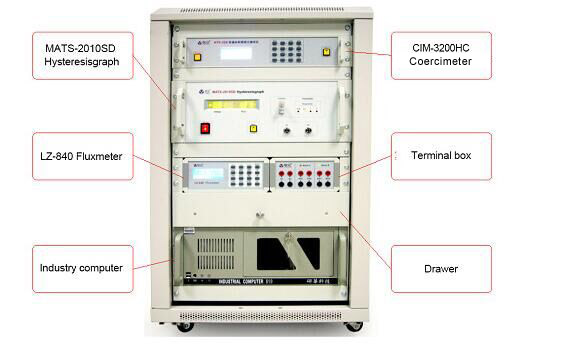

CIM-3200HC Coercimeter is composed of industry computer, CIM-3200HC Coercimeter (control mainframe), MATS-2010SD Hysteresisgraph (exciation source), LZ-840 Fluxmeter (electronic integrator) , terminal box and test platform.

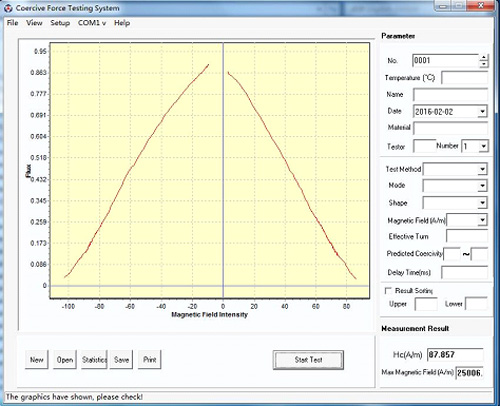

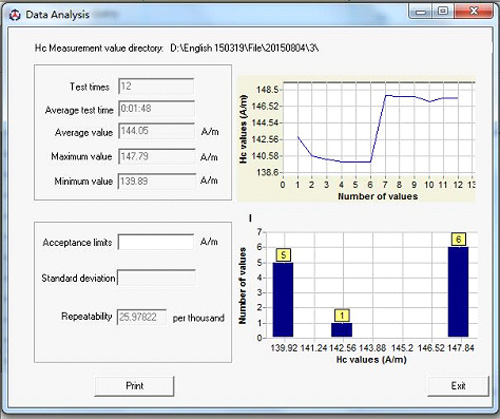

Software Interface
